Please share your PirateBox photos

Posted by darts
This forum is currently read only. You can not log in or make any changes. This is a temporary situation.
Now, this forum is in read-only mode. You find details Details hereContinue on /r/PirateBox
Re: Please share your PirateBox photos
November 18, 2013 10:17PM
Yop,

Some picture of mine smiling smiley


Re: Please share your PirateBox photos
February 21, 2014 07:34AM
Here are a couple of pics of my current PirateBox rig:







From http://crgm.net/blog/2014/02/05/my-piratebox/
Re: Please share your PirateBox photos
March 13, 2014 02:32AM

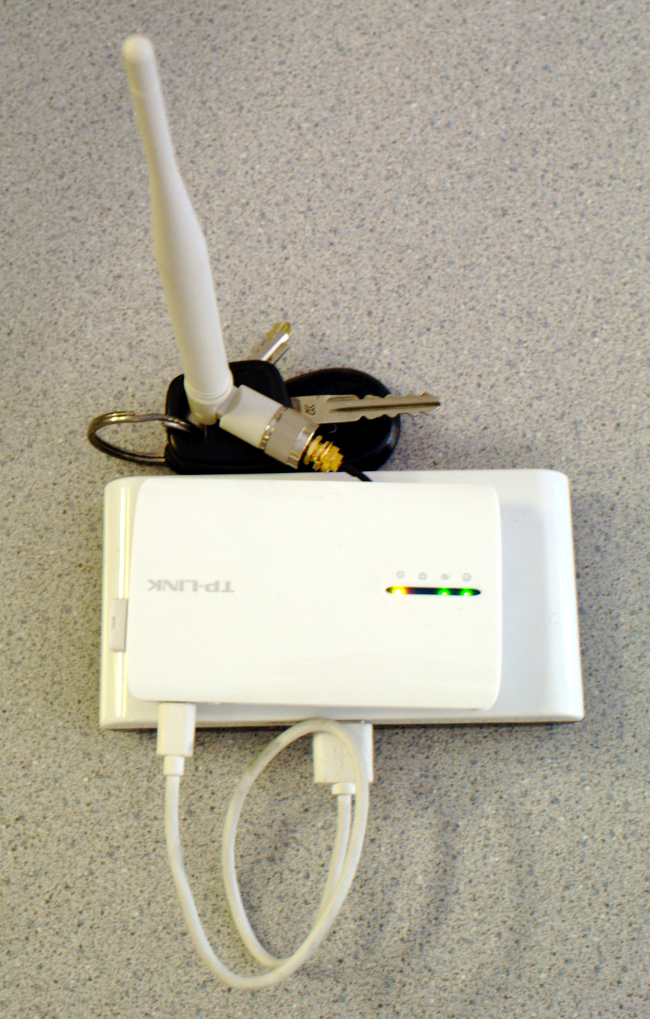

I need to find a good small usb battery so I can ditch the dumb cable hanging out the back.

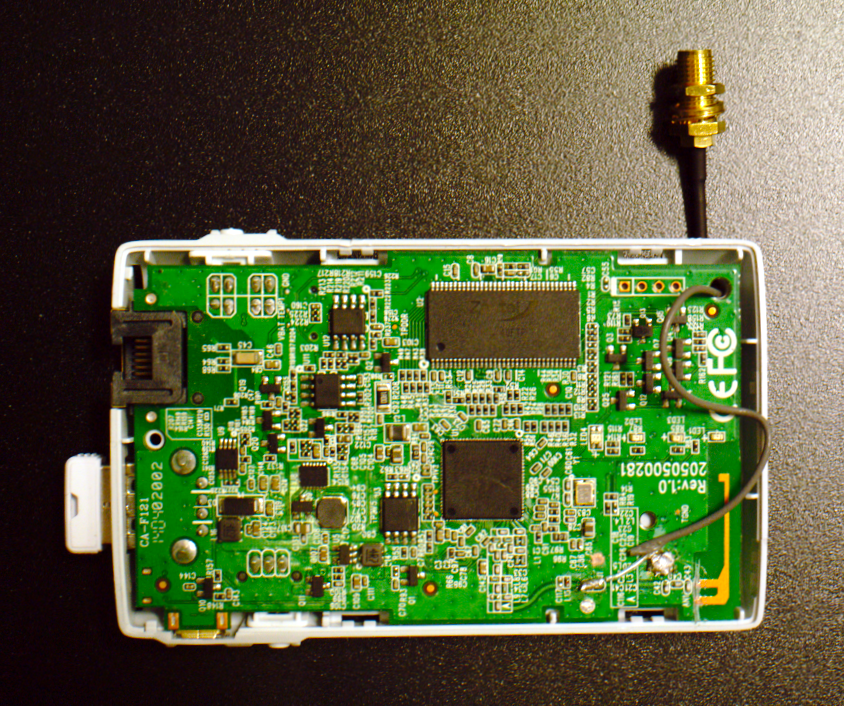

Oh and I modded it with an antenna and serial access, because I brick everything I touch.
Re: Please share your PirateBox photos
March 20, 2014 04:06PM


Edit for better image winking smiley





Edited 1 time(s). Last edit at 03/21/2014 12:23PM by Datathrash.
Re: Please share your PirateBox photos
May 20, 2014 12:44PM
PirateBox for android

running on my tablet (4.1.1 rooted)

[img42.com]

[img42.com]

[img42.com]

[img42.com]



Edited 3 time(s). Last edit at 05/21/2014 06:01AM by ora600.
Re: Please share your PirateBox photos
June 02, 2014 09:13AM


Piratebox 1.0.0 on Debian 7.5 AMD64

Zotac Nano AD11+
AMD E-450
4GB RAM
120GB mSSD
TP-Link TL-WN722N
Re: Please share your PirateBox photos
June 02, 2014 03:59PM
Awesome, Thank you
Re: Please share your PirateBox photos
June 11, 2014 07:04PM
I dont have a case...yet. But I've made some style edits, mainly just a background color change, and new buttons styles as well as few other little edits to make it all mesh nicely. There's also a device information card with some info on the device. I also just added a little warning text as I intend on carrying it around and figured people should know the connection may be lost.


Larger Image


The "Browse files" button needed some special treatment to make it look like the other buttons. Here's the html.

<a href="/Shared"><input class="button" type="submit" value="Browse Uploaded Files"></a>
Custom CSS Changes & Additions Here


Work in progress. I'll be bringing it to ToorCamp.

The heart of it is an Odroid XU running Debian Jessie. Storage is provided by a 120gb samsung SSD over USB 3.0. I've clocked it at 95MB/s. WiFi is a TL-WN7200ND with +9.5dbi omni antenna. Power is provided by the EverStart 200,000mah "portable" power supply. It will be supplemented with a 20W solar cell to keep it running over the course of the camp.


Finished (almost)!

The last thing I'm adding is a current monitor. I've already added a Teensy to monitor supply voltage, and the plan is to add a current monitor for total power consumption monitoring.
Re: Please share your PirateBox photos
July 06, 2014 09:56AM





Also, here are some specs
TP-Link TL-MR3020
EasyAcc U-bright 6000mAh
SanDisk USB STICK CRUZER 32GB Extreme USB 3.0
TP-Link TL-ANT2408CL Indoor-Desktop-omnidirectional antenna (2,4 GHz, 8 dBi)



Edited 1 time(s). Last edit at 07/06/2014 10:13AM by Smipes.
Re: Please share your PirateBox photos
July 28, 2014 10:54PM


PirateBox in Regent's Park
Powered only by the awesome GoalZero Nomad 7 solar panels.

Pictured also is the GoalZero Guide 10 Plus battery pack (plus eneloop), used to power the PirateBox when out and about.

Offline and Off the grid.



Edited 1 time(s). Last edit at 07/28/2014 10:56PM by mod7e.
Re: Please share your PirateBox photos
July 30, 2014 09:38PM
for test: wr703n + 4gb + 1800 mah total cost: 26€



in Cantal
Re: Please share your PirateBox photos
August 21, 2014 07:55PM




external RP-SMA antenna mod + 20,000 mAh battery backup + 32gb usb drive. Probably adding solar charging panel at some point, looking for unique enclosure in the meantime smiling smiley



Edited 1 time(s). Last edit at 08/21/2014 07:56PM by amish.
Re: Please share your PirateBox photos
August 22, 2014 06:24AM
Looks like an fashioned Brownie Camera.... until you open it up. The MR-3020 fits in easily (with the film carrier removed). My USB battery pack is a bit long with the cable plugged in, have a new smaller square one on order. Maybe I can rig up some blinking lights.



Open it up!

My first box winking smiley
September 07, 2014 06:14PM
Sorry meant to put this in the photo section. Can admin move it for me? I tried to delete it but failed.





Edited 1 time(s). Last edit at 09/07/2014 06:20PM by Ubuntulover.
Re: Please share your PirateBox photos
October 15, 2014 04:50PM
Re: Please share your PirateBox photos
October 15, 2014 04:52PM
Re: Please share your PirateBox photos
October 18, 2014 02:16PM
My TL-MR3040 with an Intel X25-M 80GB SSD in an external USB case, and a Coolook PB-2000 powerbank with 4x3400 mAh 18650 batteries.

And a hook & loop cinch strap to hold it all together.



Re: Please share your PirateBox photos
November 18, 2014 05:31PM


The drawing bled when i added a protective spray, but didn't mess up too bad. So far only some books, a few mp3s, and 2048 on it, but so far no one to share with anyway.
Re: Please share your PirateBox photos
November 20, 2014 12:25AM
Here's my PirateBox, aka "nanonet", running yesterday's development snapshot software on an TL-MR3040v2.2.

I'm in the process of customizing its web site and stocking its file area with relevant material to help me promote a software literacy project I'm starting up here in Fresno, California. We'll be hosting "The Hour of Code" the entire week of December 8th-14th.

I'm making my customizations on a separate local branch, and updating files on the device when I need to either by editing them with vi over ssh, or by transferring them from my desktop via scp. So far, it's amounted to tweaking the index page and the stylesheet, and adding a .png file with a new logo. Works fine.



PirateBox is prominently mentioned in the "About" section (although, for this use, I've toned down the "anonymous" pitch in favor of a more "Here's something you could learn to program!" messaging, for reasons that I hope are fairly obvious.) I'm planning on taking the "NanoNet" around town to use it to both raise awareness of the program and try to shake down prospective donors for funding.

After the first of the year, I plan to offer regular after-school and evening programs in

— Scratch (for 7 to 11 year olds)
— Processing (12 and up)
— Arduino/Raspberry Pi and "The Internet of Things"
— Web design (HTML5/CSS3) and development, starting from either Javascript or Python

We're also just about to be listed as an official CoderDojo, and we'll be hosting Girl Develop It! events as well.
Raspberry Pi Type A+
January 30, 2015 04:09PM
Micro-PC Raspberry Pi Raspberry Pi Type A +
carbon case and wifi card A high-power wireless card (3000mW) with two antennas for high throughput at long range.
This map Blueway N9100
[img11.hostingpics.net]
[img11.hostingpics.net]
smileys with beer
Re: Please share your PirateBox photos
February 06, 2015 07:21PM
I posted a picture earlier in this thread of my Piratebox-in-a-book... but I've added a few more to the family since then. From left to right: TP-LINK MR10U with a Kingston Digital 64GB DataTraveler, two MR3040s with 64GB SanDisk Cruzer Fits, and a MR3020 with a 32GB SanDisk Cruzer Fit and a PowerGen 6000mAh battery. :-D

Re: Please share your PirateBox photos
March 27, 2015 05:54PM
I call them "Stable" and "Beta".

Beta one has serial cable and is used only with 16GB flash drive and powered via USB from my PC.

Stable has no hardware modifications inside box. Has 320GB HDD and is powered via AC adapter (when hidden in server room) or via 10.000mAh power bank.

Re: Please share your PirateBox photos
May 09, 2015 04:51PM
PowerBank + TP Link MR3020







That's the set we used for the presentation of Whihax at Hack & Beers - GeeksHubs

https://www.youtube.com/watch?v=2YjyQL8OFOU
here is my completely new Piratebox :
MR3020 + 16gb + battery

Re: Please share your PirateBox photos
July 08, 2015 04:52AM

Posted this over at /r/piratebox a couple months ago. I've since bricked the mr3040 but the pi(rate)box is running strong.



The solar panel is a Joos Orange and has a built in 5,400mAh battery that may need replacing. Once I figure out how to run cables out of my pelican case it'll good to go... at least for limited testing.

Going forward I'd like to rig something like this to turn on during sunlight hours and off once the power falls to a certain point.
Re: Please share your PirateBox photos
August 15, 2015 04:44PM
Moved it from my Pi to my ESXi server. VPN from remote access, or shared via WiFi on WLAN for guests.



Re: Please share your PirateBox photos
August 16, 2015 08:05AM
grinning smiley, cool
